16 AMP 1P DC Miniature Circuit Breaker (Suntree)

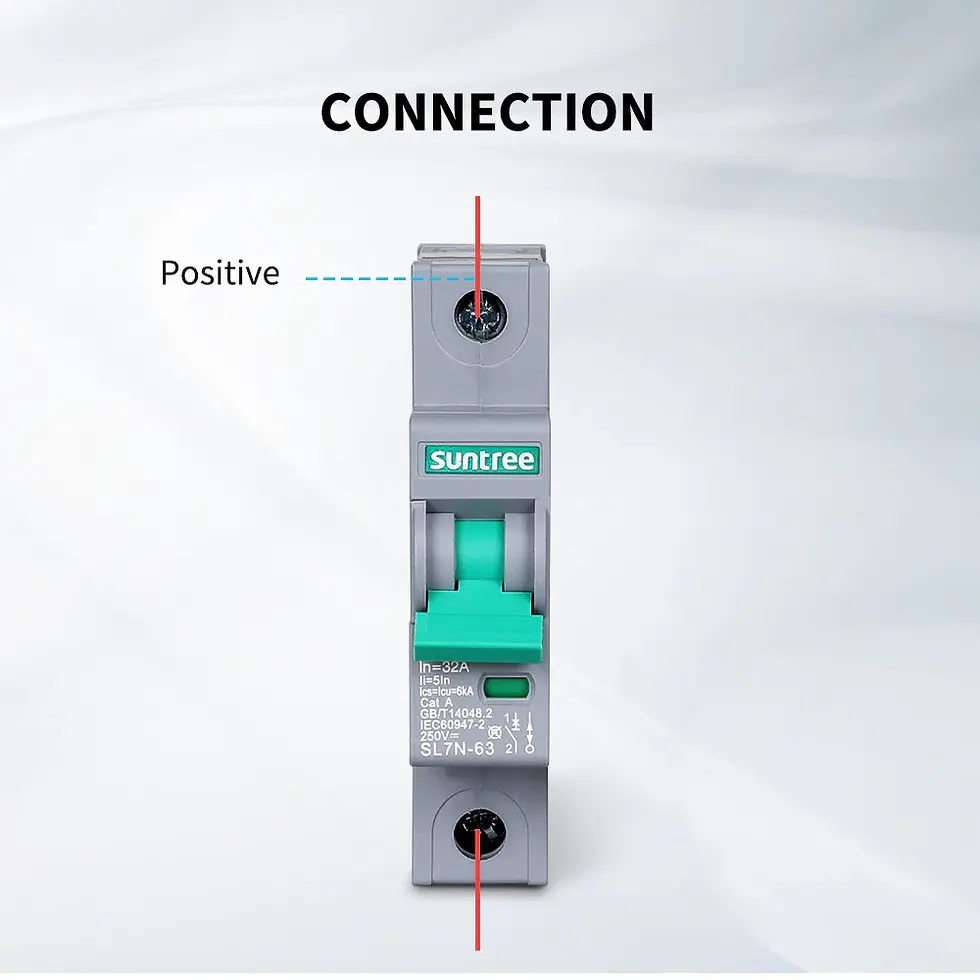

The Suntree DC Miniature Circuit Breaker is designed to protect DC electrical installations against overloads and short circuits, with both the thermal and magnetic tripping mechanism equipped. Once a fault is detected, the circuit breaker automatically switches off the electrical circuit to prevent damage to wires and avoid the risk of fire. The circuit breaker can also be manually opened under the full rated load without any damage when electrical maintenance needs to be performed. Engineered for reversible connection, the circuit breaker is allowed to be wired in either direction and functions under bidirectional current. The built-in indicator window helps identify the contact position of the circuit breaker at a glance. The buckle design enables easy installation on the standard DIN rail.
| Rated Insulation Voltage | 1250V |
| Rated Operating Voltage | 250V |
| Rated Frame Current | 63A |
| Rated Current | 16A |
| Number of Poles | 1 |
| Operating Short-Circuit Breaking Capacity | 6KA |
| Ultimate Short-Circuit Breaking Capacity | 6KA |
| Rated Impulse Withstand Voltage | 6KV |
| Mechanical Life | 20000 Times |
| Electrical Life | 10000 Times (<125VDC) |
| Rated Non-Tripping Current | 16.8A |
| Rated Tripping Current | 20.8A |
| Rated Instantaneous Tripping Current | 96A |
| Trip Mechanism | Thermal-Magnetic |
| Protection Rating | IP20 |
| Damp Heat Resistance | Type 2 |
| Operating Relative Humidity | ≤95% |
| Operating Temperature Range | -22℉~158℉ (-30℃~70℃) |
| Storage Temperature Range | -40℉~185℉ (-40℃~85℃) |
| Installation Method | DIN Rail |
| Conductor Size | 14 AWG~4 AWG |
| Recommended Terminal Torque | 17.7 inch·lbs ~20.4 inch·lbs (2 N·m ~2.3 N·m) |
| Dimension | 3.2 x 3.0 x 0.7 in (82 x 76 x 18 mm) |
| Weight | 4.2 oz (120 g) |
